Induction heat machine HX-15KW
Masina de incalzit prin inductie HX-15KW
Masina de incalzit prin inductie HX-15KW
HENGXIN Science & Technology Co., Ltd. of China
Crystal Type High Frequency Induction Heating Machine Series
Products are ideal to heat, weld and smithing for small hardware.
Small capacity, little weight and good electricity saved are favored;
The power consumption is only a quarter of the similar high frequency product wich use electronic tube at same heat rate;
And the safety is another advantage of product, regard of the danger of high voltage electroshock, there is no applied voltage is higher than 10,000 Volt in apparatus.
Crystal Type High Frequency Induction Heating Machine Series
Products are ideal to heat, weld and smithing for small hardware.
Small capacity, little weight and good electricity saved are favored;
The power consumption is only a quarter of the similar high frequency product wich use electronic tube at same heat rate;
And the safety is another advantage of product, regard of the danger of high voltage electroshock, there is no applied voltage is higher than 10,000 Volt in apparatus.
Main parameters
Caracteristici tehnice
Caracteristici tehnice
- Input voltage: Single phase (220V/50Hz-60Hz);
- Output Vibrated Power: 15kW;
- Output Vibrated Frequency: 30-100KHz;
- Heat Current: 160A-600A;
- Insulating Current: 160A-600A;
- Utilization Factor: 80%;
- Input Current: 40A;
- Output Current: 120A-700A;
- Refrigerant Water Pressure: 0.05-0.2MPa;
- Water Temperature: <40C;
- Capacity: 460x400x220mm;
- Weight: 26kg.
Control panel of induction heat machine HX-15kW
Panoul de comanda al masinii de incalzit prin inductie HX-15kW
Panoul de comanda al masinii de incalzit prin inductie HX-15kW
Details - Main transformer (water-cooled)
Detalii transformator principal (racit cu apa)
Detalii transformator principal (racit cu apa)
Detail - Resonance capacitor
Detaliu condensator rezonanta
Detaliu condensator rezonanta
Detail - Power transistors (mosfet)
Detaliu tranzistoare de putere (mosfet)
Detaliu tranzistoare de putere (mosfet)
Detail - Filter panel
Detaliu - Modul condensatoare filtraj
Detaliu - Modul condensatoare filtraj

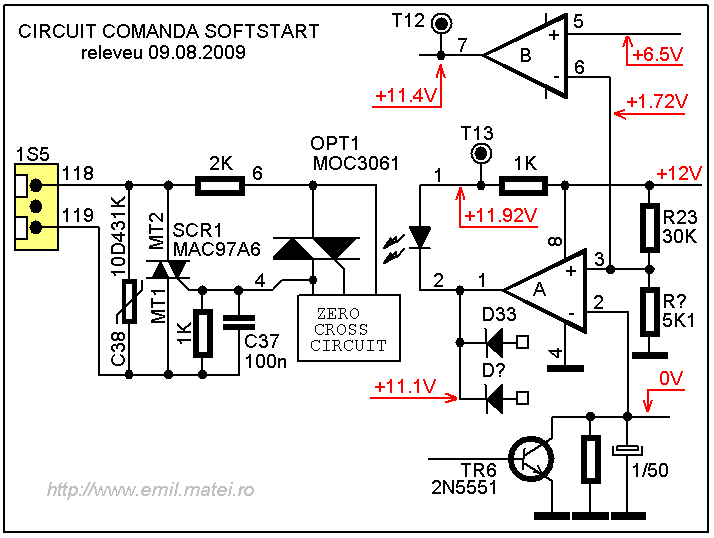

Detail - Softstart circuit
Detaliu circuit de pornire lenta
Detaliu circuit de pornire lenta
Control board
Placa de comanda
Placa de comanda

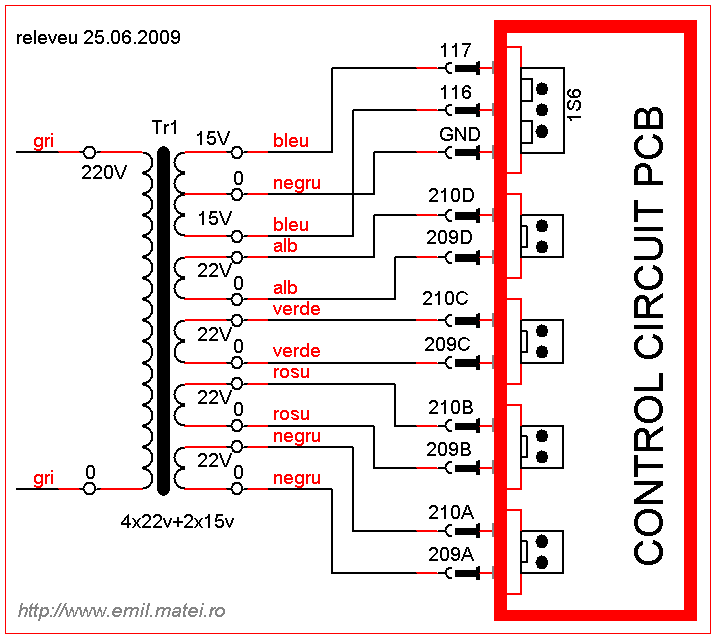

Transformer power supply for control board
Transformatorul surselor de alimentare a placii de comanda
Transformatorul surselor de alimentare a placii de comanda

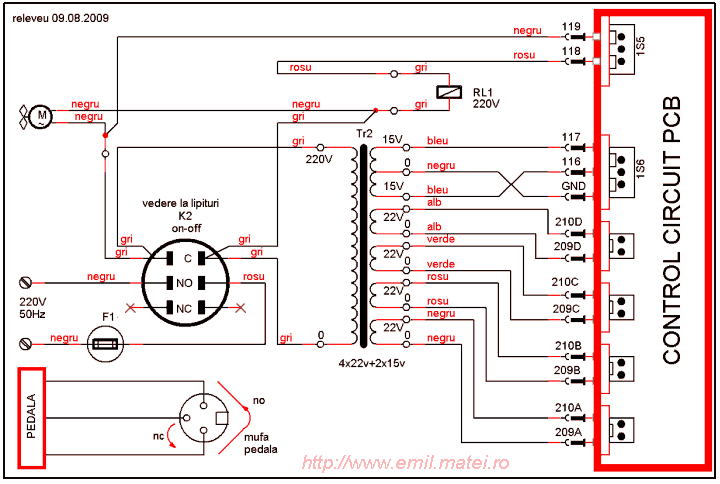

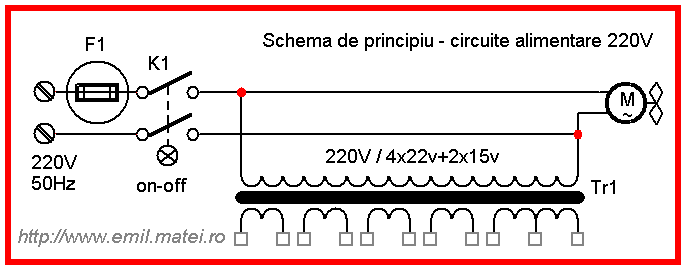

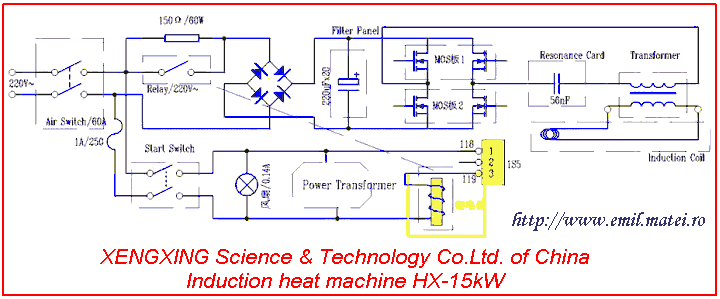

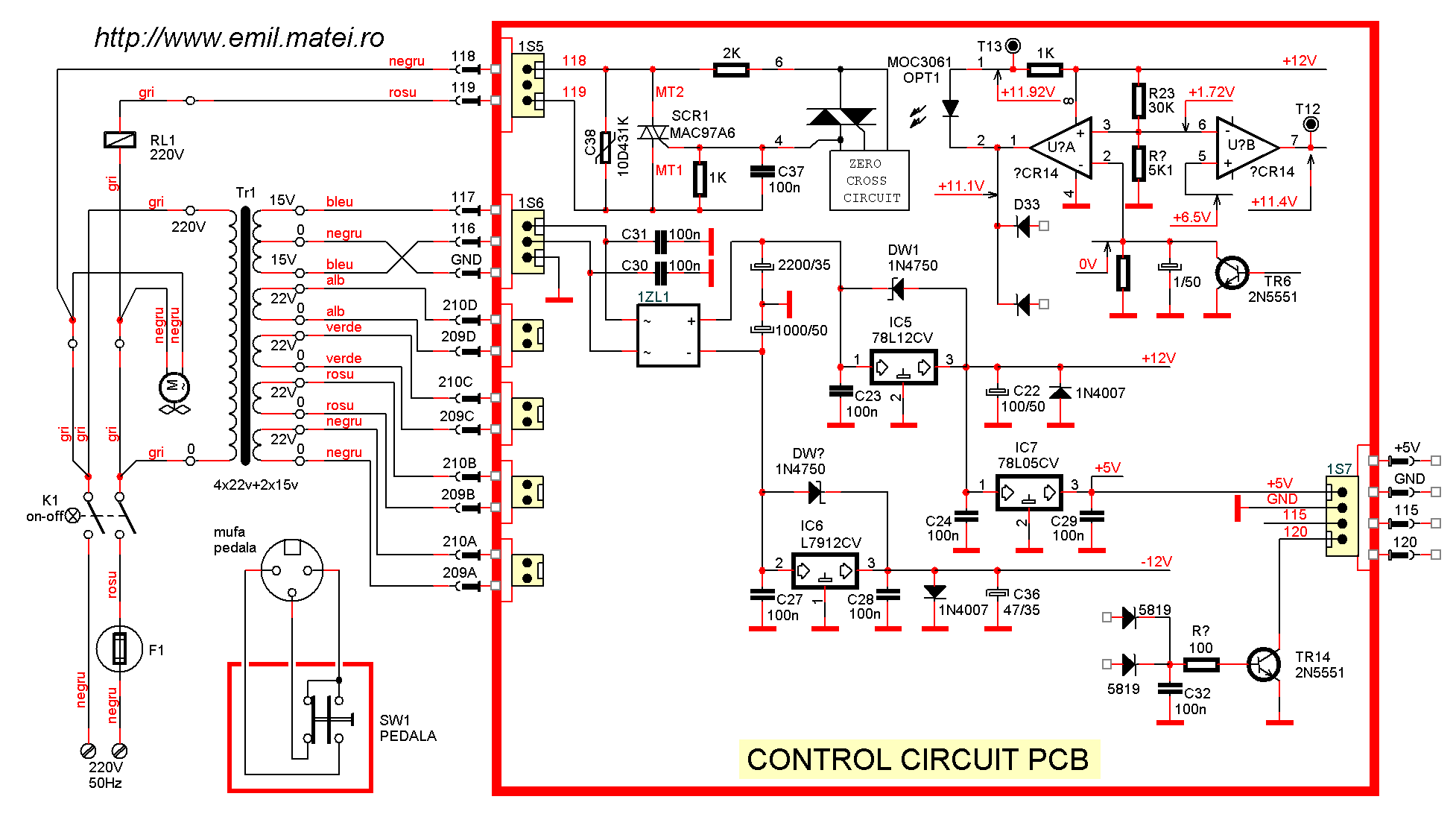

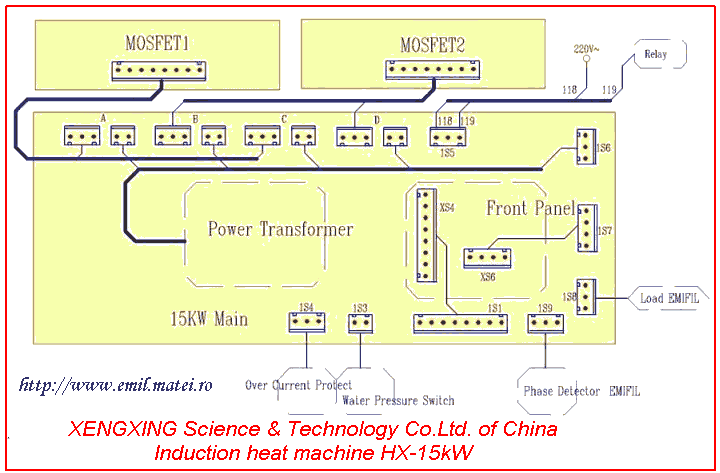

Schematic diagrams
Scheme de principiu
Scheme de principiu
